60v-120v 6000w bldc motor controlle/brushless electric machinehigh current speed motor controller with

6000w 60v -120v

Overview

Quick Details

Place of Origin:

Jiangsu, China (Mainland)

Brand Name:

Changzhou gengtai electronics co. LTD

Model Number:

GTK-9G

Motor Type:

DC Motor

Motor Angle:

120°

Available voltage:

48V , 60V,72v,84v,96v and120v

Available power:

5000W

Limiting ampere:

220A

Color:

Silvery white

Application:

Electric tricycle, electric bike

Packaging & Delivery

Delivery Time

7-10 working days after order

Product Description

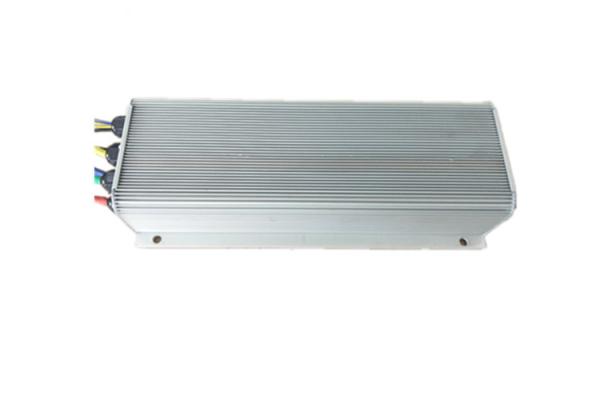

Big power brushless dc motor controller 5000w

The electric vehicle controller is the core control device used to control the start, run, advance and retreat, speed, stop and other electronic devices of the electric vehicle. It is like the electric car's brain, which is an important part of the electric car. Electric cars including electric bicycles, electric two-wheeled motorcycles, electric tricycles, electric three-wheeled motorcycles, electric four-wheelers, battery cars, electric car controller, so different models have different performance and characteristics.

Functions

1.Over/under voltage protection function offers real-time battery current monitoring (For optional)

2.Single periodic current adjustment provide over voltage protecting in microsecond rates.

3.With thermal sensor to detecting any thermal information.

4.Configurable EABS brake system effect by strong/weak braking signal (For optional)

5.Safety reversing function, reversing speed can be set by 30% to 50% of the forwarding speed

6.Providing +5V powering to hall sensor with over current protecting,

7.Configurable Forwarding, Neutral and Reversing operations(For optional)

8.3 wires access of speed governing, additional supplying +5V power source

9.5 wires access of hall sensor connector, no hall sensor application is available for optional

10.Real-time battery current monitoring system make sure the output current will not excess the maximum battery working current

Specification

Buying Guides

First look at your electric car battery voltage levels, corresponding to the selected voltage controller.

Second look at the size of the current controller previously used, such as the current is 16A-18A 350W controller, 22A-24A controller is 450W, 28A -30A controller is 500W, 31A-33A is 600W controller, 33A-35A is 800W controller, 36A-38A is the 1000W controller, 40A-43A is the 1200W controller, 50A is about 1500W controller .

Such selection controller, if the original car is 350W controllers we recommend the use of bigger, so you can take advantage of the highest motor speed and power.
