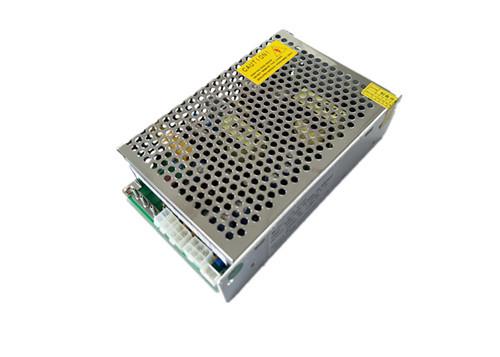

Spectrophotometer power supply / Atomic Absorption Spectrophotometer AAS
Specifications:
| Model | GTK-035B |
| Input voltage | Ac90v-265v |
| Input current | 2a. |
| 5V | 4.90-5.3V, maximum current 3.0a. |
| ± 12V | 11.7-12.3v, maximum current 0.3A. |
| 12V: | 11.8-12.5V, maximum current 3.0A. |
| Tungsten lamp output 6V tungsten lamp | 5.0-5.7v, can be set. Maximum current 2.0A |
| 12V tungsten lamp | 10.5-11.5V, set. Maximum current 2.0A |
| Voltage withstand | AC 1500V / 1min. |
| Turn off signal | 3 ~ 12V, minimum current 1 mA. |
| Volume | 160 * 99 * 40 mm3. |
| Weight | 0.6 kg |
The voltage stability of tungsten lamp is greater than 1‰.
Description:
5V/3A can be used for CPU, display, micro printer or stepping motor;
± 12V/0.3A, generally used for amplifying circuit;
12V/3A can be used for stepping motor and fan;
The tungsten lamp output can be 6V or 12V, if it is 6V, the adjustment range is 5.0-5.5v, if it is 12V, the adjustment range is 10.5-11.5v. For the voltage that has been set, it has a high precision and is suitable for analyzing the tungsten lamp of the instrument.
Applications:
It is mainly used in visual analysis instrument.
