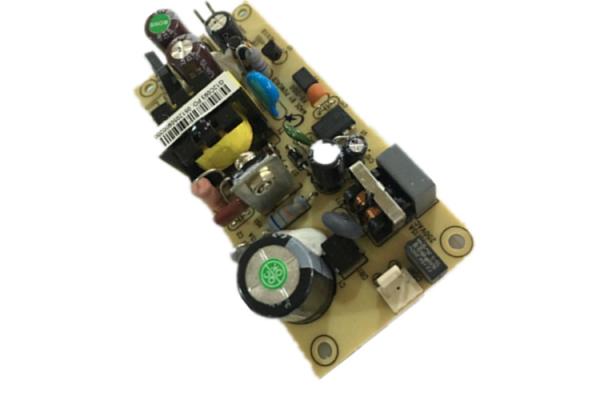

    GTK-7524 Instrument Power Supply Industry Bare Plate Switching Power Supply

    Ask Lasest Price
    Brand Name : G·T
    Model Number : GTK-75-5
    Price : USD12-15PCS
    Payment Terms : T/T
    Supply Ability : 500 pcs per month
    Delivery Time : 10-15 working days upon order quantity
    • Product Details
    • Company Profile

    GTK-7524 Instrument Power Supply Industry Bare Plate Switching Power Supply

    Power GTK-7524 factory direct communication industry bare plate switching power supply


    Product nameGTK-75-5GTK-75-12GTK-75-24GTK-75-48
    outputDC voltage5V12V24V48V
    Output rated current12A6A3.2A1.62A
    Output current range0~12.0A0~6.0A0-3.2A0~1.6A
    Rated output power60W72W75W75W
    Total peak output power72W86.4W92W92W
    Peak output current14.4A7.2A3.83A1.91A
    Peak ripple noise50mV80mV80mV120mV
    Output voltage regulation range4.75V-5.5V10.8V-13.2V21.6V-26.4V43.2V-52.8V
    stabilized voltage precision±1%
    Source adjustment rate±0.5%
    Load adjustment rate±1%
    temperature coefficient±0.03%/℃
    Output startup time≤1S(230Vac input, Full load)
    Output hold time≥20mS(230Vac input, Full load) ≥10mS(120Vac input, Full load)
    Overshoot of voltage<5.0%
    inputInput voltage90Vac~264Vac
    Input rated voltage range100Vac~240Vac
    Input frequency47Hz~63Hz
    Starting voltage88Vac(176VAC~264VA,-30℃)(,
    efficiency≥79%≥84%≥86.5%≥88%
    Input current≤2.5 A
    Start the shock current≤60A (input 264Vac, power cooler state)
    standby power<0.5W
    protectOverpower protection63W~90W75.6W~108W constant power80.64W~115.2W constant power81.6W~116.6Wconstant power
    functionOvervoltage protection5.5V~7.0V13.2V~15.6V26.4V~32.4V52.8V~62.4V
    Overcurrent protection12.6A~18A6.3A~9Aconstant power3.36A~4.8Aconstant power1.701A~2.43constant power
    Short circuit protectionIt can be short circuited for a long time and automatically recover after the short circuit is eliminated
    Environmental ScienceWorking temperature and humidity-20℃~70℃; 20%~90%RH
    Storage temperature and humidity-40℃~85℃; 10%~95%RH
