60V48V step-down adjustable voltage regulator 15A synchronous rectifier module

Module name: 200W Synchronous Step-Down adjustable module

Model: GTK-ZS-Q5

Type: non isolated depressurization module (BUCK)

Input voltage: 8-55V (limit 60V, leave allowance)

Output voltage: 1-36V continuously adjustable (factory default 12V)

Output current:

the maximum current of the normal 10A (MAX) 15A is the maximum current under a specific condition (measured 12 5V), the actual output current is not fixed, it is related to the input and output pressure difference, and the temperature is related.

Output power:

well ventilated, natural heat dissipation power for a long time 100W, enhanceheat dissipation up to 200W. If you work for a long time, please pay attention to temperature rise and heat dissipation.

Working temperature: -10~+85 degree

Working frequency: 180KHz

Conversion efficiency:

up to 94% (efficiency is related to input, output voltage difference, output current).

Overcurrent protection: (output current must exceed maximum sampling current (15A) before protection).

Back protection: (unburned)

Connection mode:

high current connection terminal, no welding, IN+ input positive, IN- negative input, OUT+ positive output, OUT- negative output.

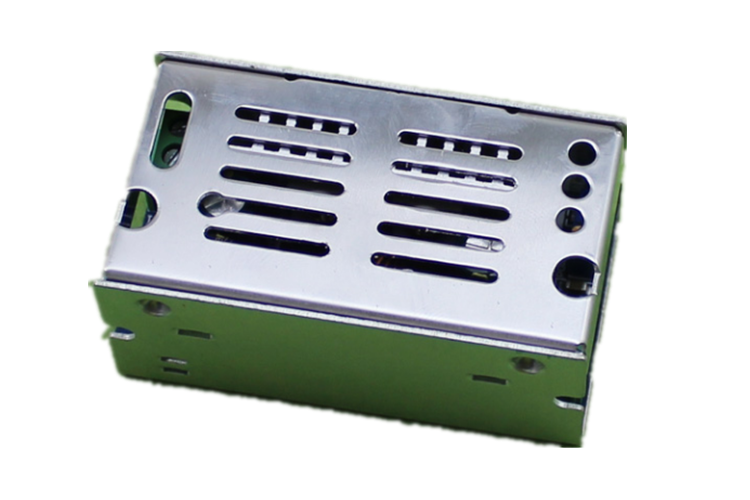

Aluminum shell size: 70MM*38MM*31MM

Net weight: 60g
