Brand Name : | G·T |
Model Number : | GTK-A-750-12 |
Price : | USD80-120 PCS |
Payment Terms : | T/T |
Supply Ability : | 500 pcs per month |
Delivery Time : | 10-15 working days upon order quantity |

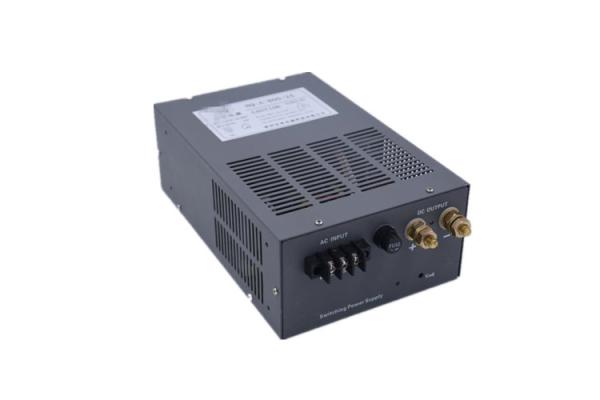

Switch Mode Industrial Power Supply For , 12 V DC Power Supplies High Efficiency
Specification:
Model | GTK-A-1200-12 |
GTK-A-750-12 | |
Input Voltage | AC180V-250V 47/63Hz |
Output Power | 750W-1200W |
power factor | 0.7@230ac |
output voltage | 12V |
output current | 60A-100A |
Category | Constant voltage |
Ripple | 80mV |
transfer efficiency | ≥85% |
high-voltage | I/P-FG1.5KVac |
IP-O/P1.5KVac | |
leak current | 0.3mA@230ac |
defencive function | Short circuit, overload |
operating temperature | -10-+50℃ |
Storage Temperature | -40-80℃ |
standard of security | GB4943,EN60950 |
EMC criterions | GB9254 EN55022A |
Average barrier-free working hours | >50000hours |
heat-dissipating mehthod | Fan |
size | 248mm*158mm*87mm |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
![]() |
